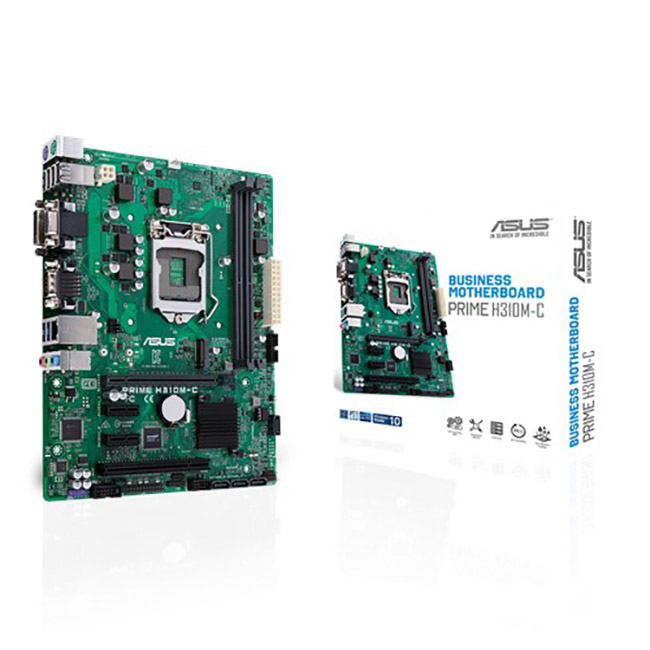

С/плата ASUS Prime H310CM- sok-1151v2 intel H310c 2XDDR4

Процессор
Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Чипсет
Intel® H310
Оперативная память
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Графика
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI-D/RGB ports
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 2 displays simultaneously
Слоты расширения
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
1 x PCI
Хранилище данных
Intel® H310 Chipset :
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
4 x SATA 6Gb/s ports (gray)
Локальная сеть
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Аудио
Realtek® ALC887 8-Channel High Definition Audio CODEC
Supports : Jack-detection, Front Panel Jack-retasking
Порты USB
Intel® H310 Chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Эксклюзивные особенности
Bespoke Motherboard Design & Business Focused Features :
ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
ASUS Event Log: Record activities of system and provides information in BIOS
ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
 Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM
Разъемы на задней панели
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
4 x USB 2.0
3 x Audio jack(s)
Разъeмы на плате
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
1 x LPT header
2 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x LPC Debug header
1 x Speaker connector
Аксессуары
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit
Администрированиe
WOL, PXE
Диск с драйверами
Drivers
ASUS Commercial BIOS Kits
ASUS Watchdog Timer
Форм-фактор
uATX Form Factor
9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )
Примечание
*1. Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2. Use with amplified speaker is suggested.
*3. When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_2 port.
